Amp in protection mode

Post a reply

Confirmation code
Enter the code exactly as it appears. All letters are case insensitive.
Smilies
:awesome: :argh :ditto :inout :words :bow :cheers: :bigwink: :fing02: :sad017: :scorp: :o :D ;) :p :unwell028 :tongue017 :thumbsup :surprised :sm29: :angry011: :angry015: :angry012: :nono: :angry010: :nono :banghead :mad: :dif :angry :CRZ_13: :eek: :confused: :confused0 :confused :( :sad: :cool: :dance :mecry: :jesterlol :embarrass :flame: :doh :evil019: :evil001: :rolleyes: :sub:
View more smilies
BBCode is ON
[img] is ON
[url] is ON
Smilies are ON
Topic review


Expand view Topic review: Amp in protection mode

Re: Amp in protection mode

by Chris from Washington » Thu Jul 05, 2018 6:51 am

Were you able to get it working?

Re: Amp in protection mode

by rodacollier » Tue Jul 03, 2018 4:45 am

Do you have your speaker wires coming off the amp like it is shown on page 11 of the owners manual ?
https://www.bossaudio.com/manual/PHANTOM-AB_EN_UM.PDF

Re: Amp in protection mode

by rodacollier » Tue Jul 03, 2018 4:30 am

Is this how your speaker wires are coming off the amp ?



Sent from my iPhone using Tapatalk

Amp in protection mode

by rodacollier » Mon Jul 02, 2018 4:14 pm

Duplicate

Re: Amp in protection mode

by jdagillis » Mon Jul 02, 2018 4:02 pm

So Im kinda guessing its the amp probably

Sent from my LGL164VL using Tapatalk

Re: Amp in protection mode

by rodacollier » Mon Jul 02, 2018 2:42 pm

Could you post a pic of how the speaker wires are connected to the amp on the output side ?


Sent from my iPhone using Tapatalk

Re: Amp in protection mode

by jdagillis » Mon Jul 02, 2018 1:35 pm

OK I just checked it will not go onto protective mode with sub's unpluged but when I plug them up they beat for a few seconds the amp goes to protect

Sent from my LGL164VL using Tapatalk

Re: Amp in protection mode

by jdagillis » Mon Jul 02, 2018 1:19 pm

It will come on and you can hear the sub's but as long as its turned down like below volume 10 it will stay on if any higher that when it shuts off

Sent from my LGL164VL using Tapatalk

Re: Amp in protection mode

by jdagillis » Mon Jul 02, 2018 1:17 pm

Yes those are my sub's and here is a pic of my amp. I had them wired a different way to start with red to red black to black and they sounded awesome worked for months. I now have them wired like your pic Image

Sent from my LGL164VL using Tapatalk

Re: Amp in protection mode

by Chris from Washington » Mon Jul 02, 2018 12:25 pm

Are these the subs you have?
https://www.sonicelectronix.com/item_23 ... 26DVC.html

It looks like your amp can go down to 4ohm bridged.

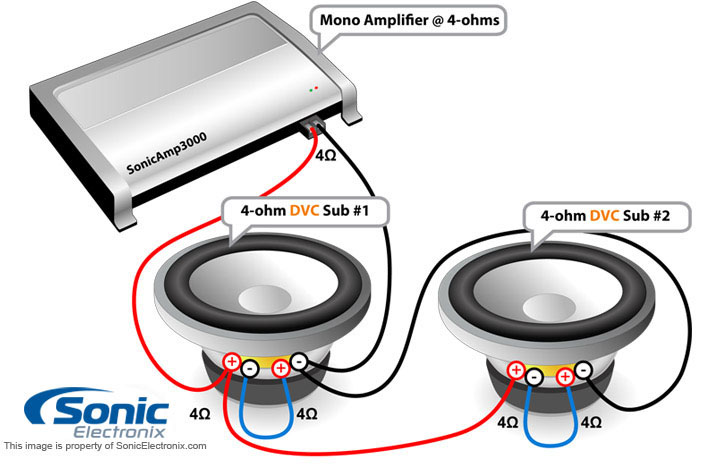

Just to verify, do you have them wired up like this?

Your amp, can go down to a 4ohm load. So if wired like above, you should be OK.

Does it go into protection as soon as you turn it on?
Does it go into protection with the speakers not hooked up? If it does, then you rule out the speakers and you have an issue with the amp.
